- 关键特征与功能
-

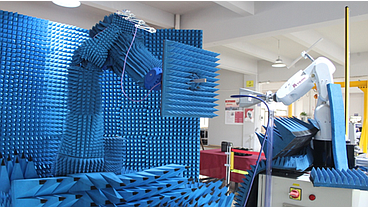

- 机器人运动,精度最高支持220GHz测量

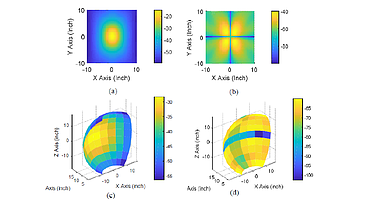

- 小型毫米波微波天线平面近场测试
- 教育和科研类用途高成本效益的解决方案
- 紧凑的体型只需极小的空间,很适合实验室演示
- 技术参数表和关键文件
-
- 系统配置
-
- 硬件系统
- 软件系统
- 工装和附件
- 硬件用户手册
- 软件用户手册
- 如何购买
Specifications
For more details: View Data Sheet Gain Repeatibility, Typ |
0.02 dBi |
|
HPBW Repeatibility, Typ |
0.05 deg |
|
SLL-20db Repeatibility,rms |
0.08 dB |
|
SLL-30db Repeatibility,rms |
0.15 dB |
|
System Angular Accuracy |
0.01 deg |
|
System Pointing Accuracy |
0.05 deg |
|
Beam Pointing Testing Accuracy |
0.04 deg |
|
DUT Re-positon Accuracy |
0.05 deg |
|
DUT Max Scan Angle |
60 deg |
|
Auto Coordinates Calculation |
6 (c_d, c_s, c_p, c_t, c_f, c_b) |
|
System Drive |
Full Servo Drive |
|
Typ Scan Size |
1.0m x 1.0m x 0.5m |
|
Scan Speed |
1mm/s - 300mm/s |
|
Surface Flatness, Typ |
0.05mm RMS |
|
Position Resolution, Typ |
0.02mm RMS |
|
Probe Max Weight |
25kg |
|
Control Unit |
Industrial PC + LED |
|
Power Supply |
380 VAC; 50/60 Hz, 2500 watts |
|
Usage Temperature Range |
0-40deg |
|
Storage Temperature Range |
-10 ~ 60 |
|
Product Dimension |
Large() |
|
Product Weight |
550kg |
|
Packaging Size & Weight |
Large() |
|
Typ Space for Deployment |
5m x 5m |
|
Typ Anechonic Chamber |
6m x 6m x 4m |
|
Testing Modes |
Planar, Spherical, Farfield |
|
Probe Calibration Models |
OEWG,Fullwave Model, Customized |
|
Max Spherical Mode Number |
Unlimited |
|
Max Planar Sample Size |
Unlimited |
|
Grade of Anti-collision |
High |
|
Temperature Compensation |
Included |
|
Machine Vision Function |
Software Included |
|
Real Time CCTV |
Included |
|
Software Licenses |
Aerospace Lic. |
|
Std Option: Portable Automatic Elevator Station |
Included in ML-Model |
|
Std Option: Auto Phase Center Solver |
Included |
|
Std Option: Auto Coordinate Solver based on Beam Direction |
Included |
|
Std Option: Laser Tracker Interface Driver Function |
Included |
|
Std Option: Phased Array System Interface Driver Function |
Included |
|
Std Option: Time Domain Function |
Included |
|
Std Option: Software Based Collision Avoidance Feature |
Included |
|
Std Option: # of Coordinate Calibration Solvers |
3 types |
|
Std Option: Gain Extrapolation Solver Function |
Software Included |
|
Std Option: Cylindrical Nearfield Testing Feature |
Upgradable |
|
Options & Upgrade
Services
Post-Purchase Upgrades |
|
|
FM81-AH001 | Collision avoidance light grating that could prevent robot from collision with device under test | |
Functional Options |
|
|
FM81-AS002 | Software module used for three-eye fast coordinate calibration, which is the driver for AH002 hardware module |
