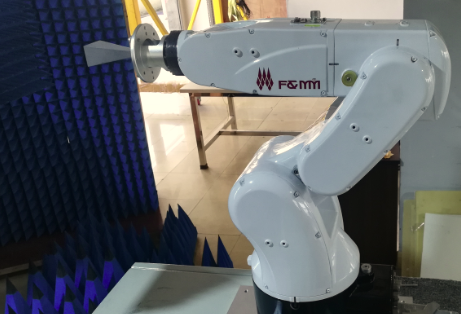

FM81SI Wireless Testing and Performance Assessment System SI-Model

$ xxx Typical Price*

Key Features and Functions
  • Robotic motion with accuracy upto 220GHz Measurement
  • Small mm-wave antenna planar nearfield measurement
  • Cost effective solution for educational and research purposes
  • Compact body requires minimum space ideal for lab demonstrations
Data Sheet and Key Documents
What's Included
  • Hardware systems
  • Software systems
  • Accessories for fixture and tools
  • Hardware user manual
  • Software user manual
How to Buy

 Specifications

For more details:  View Data Sheet
Gain Repeatibility, Typ
 0.03 dBi

HPBW Repeatibility, Typ
 0.06 deg

SLL-20db Repeatibility,rms
 0.1 dB

SLL-30db Repeatibility,rms
 0.18 dB

System Angular Accuracy
 0.02 deg

System Pointing Accuracy
 0.08deg

Beam Pointing Testing Accuracy
 0.08 deg

DUT Re-positon Accuracy
 0.08 deg

DUT Max Scan Angle
 50 deg

Auto Coordinates Calculation
 6 (c_d, c_s, c_p, c_t, c_f, c_b)

System Drive
 Full Servo Drive

Typ Scan Size
 0.5m x 0.5m x 0.2m

Scan Speed
 1mm/s - 300mm/s

Surface Flatness, Typ
 0.05mm RMS

Position Resolution, Typ
 0.02mm RMS

Probe Max Weight
 10kg

Control Unit
 Industrial PC + LED

Power Supply
 100-240 VAC; 50/60 Hz, 1500 watts

Usage Temperature Range
 0-40deg

Storage Temperature Range
 -10 ~ 60

Product Dimension
 Compact ()

Product Weight
 50kg

Packaging Size & Weight
 Compact ()

Typ Space for Deployment
 1.5m x 1.5m

Typ Anechonic Chamber
 2.0m x 2.0m x 1.5m

Testing Modes
 Planar, Spherical

Probe Calibration Models
 OEWG，Fullwave Model

Max Spherical Mode Number
 20

Max Planar Sample Size
 40001

Grade of Anti-collision
 Mid

Temperature Compensation
 Upgradable

Machine Vision Function
 Upgradable

Real Time CCTV
 Non-upgradable

Software Licenses
 Industrial Lic.

Std Option: Portable Automatic Elevator Station
 Included in L-Model

Std Option: Auto Phase Center Solver
 Upgradable

Std Option: Auto Coordinate Solver based on Beam Direction
 Upgradable

Std Option: Laser Tracker Interface Driver Function
 Upgradable

Std Option: Phased Array System Interface Driver Function
 Upgradable

Std Option: Time Domain Function
 Upgradable

Std Option: Software Based Collision Avoidance Feature
 Upgradable

Std Option: # of Coordinate Calibration Solvers
 2 types

Std Option: Gain Extrapolation Solver Function
 Upgradable

Std Option: Cylindrical Nearfield Testing Feature
 Upgradable

 Options & Upgrade

Services
Post-Purchase Upgrades

FM81-AH001 Collision avoidance light grating that could prevent robot from collision with device under test
Functional Options

FM81-AS002 Software module used for three-eye fast coordinate calibration, which is the driver for AH002 hardware module

 Resource Center

Product Highlights

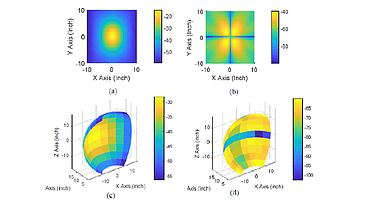

Testing System and Technology

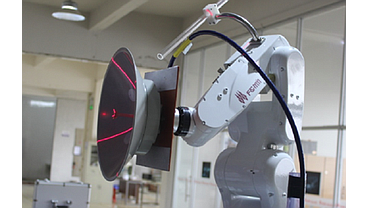

Accuracy and Efficiency

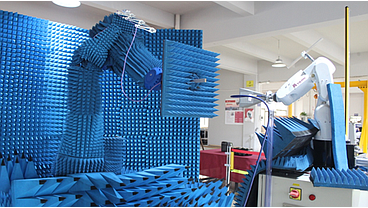

Turn-key Testing Solution

Accessories

FM81-AH001

FM81-AH002

FM81-AH003

FM81-AS101
