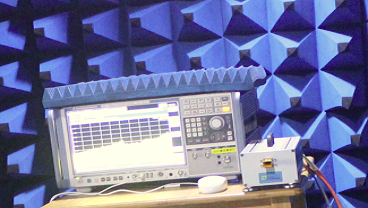

FM57MA Commercial Radar and Antenna Testing System in Chamber MA-Model
FM57MA Commercial Radar and Antenna Testing System in Chamber MA-Model
$ xxx
Typical Price*
- Key Features and Functions
-
- Effectively calibrate automobile sensors and radars
- Provide component to full radar sensor measurements automatically
- Ease of both manufacturing and R&D tests to bridge gap in full product life-cycle
- Good adaptability for indoor 1-220GHz various microwave farfield measurement
- Perform precise 6-deg of dimensional adjustment during testing for future multi-beam 5G&6G sensors
- Data Sheet and Key Documents
-
- What's Included
-
- Hardware systems
- Software systems
- Accessories for fixture and tools
- Hardware user manual
- Software user manual
- How to Buy
Specifications
For more details: View Data Sheet Gain Repeatibility, Typ |
0.02 dBi |
|
HPBW Repeatibility, Typ |
0.05 deg |
|
SLL-20db Repeatibility,rms |
0.08 dB |
|
SLL-30db Repeatibility,rms |
0.15 dB |
|
System Angular Resolution |
0.01 deg |
|
System Pointing Accuracy |
0.05 deg |
|
DUT Re-positon Accuracy |
0.05 deg |
|
Back Slash Angle |
0.01 deg |
|
Auto Coordinates Calculation |
6 (c_d, c_s, c_p, c_t, c_f, c_b) |
|
TX Typ Rotary Range |
POL: ±180° EL: +/-90°AZ: +/-90° |
|
RX Typ Rotary Range |
AZ1: ±180° POL: ±180° EL: ±90° AZ2: ±75° |
|
TX Rotary Range (>77GHz) |
POL: ±125° EL: +/-10°AZ: +/-10° |
|
RX Rotary Range (>77GHz) |
AZ1: ±180° POL: ±180°EL: ±60° AZ2: ±75° |
|
LOS Alignment DOF |
6 DOF |
|
System Drive |
Full Servo Drive |
|
Testing Distance, Typ |
5m |
|
Rotation Speed |
0.1°/s ~ 4°/s |
|
Position Resolution, Typ |
0.02mm RMS |
|
TX Side Max Weight |
4kg |
|
RX Side Max Weight |
25kg |
|
Control Unit |
Industrial PC + LED |
|
Power Supply |
100-240 VAC; 380V 50/60 Hz, 3500 watts |
|
Usage Temperature Range |
0-40deg |
|
Storage Temperature Range |
-10 ~ 60 |
|
Product Dimension |
Mid () |
|
Typ Anechonic Chamber |
8.0m x 5.5m x 3.5m [Workshop-Model] |
|
Testing Modes |
Farfield, Multi-hybrid |
|
System Self-calibration |
Manual + Auto |
|
Real Time CCTV |
Included |
|
Software Licenses |
Aerospace Lic. |
|
Std Option: Manual Calibration Toolkit |
Included |
|
Std Option: Automatic Calibration Toolkit |
Included |
|
Std Option: Production line automation and reporting feature |
Included |
|
Type1 Mode: Angular Calibration Functionality using Corner Reflectors |
Included |
|
Type2 Mode: ERIP Pattern Measurement Functionality |
Included |
|
Type3 Mode: Radar Simulator Testing Functionality |
Upgradable |
|
Type4 Mode: Radar Angular Resolution Measurement Functionality |
Included |
|
Type5 Mode: System Noise Measurement Functionality |
Included |
|
Type6 Mode: System RCS Pattern Measurement Functionality |
Included |
|
Type7 Mode: Passive Component Pattern Measurement Functionality |
Included |
|
Type8 Mode: ERIP Frequency Sweep Measurement Functionality |
Included |
|
Options & Upgrade
Services
Post-Purchase Upgrades |
|
|
FM57-AH001 | Laser sensing mechanical kits for manual calibration that allows the laser goes through the kit to establish 6-DOF coherance | |
FM57-AH002 | Laser sensing TX kits for manual calibration that yields multiple DOF adjustment and ejects laser signal | |
FM57-AH003 | Laser sensing RX kits for manual calibration that yields multiple DOF adjustment and ouputs trigger signal by laser | |
Functional Options |
|
|
FM57-AS001 | Software module used for manual system calibration, which is the driver for AH001,AH002 and AH003 hardware module | |
FM57-AS003 | Software module used for automatic system calibration, which allows one-click achieving transmitting and receiving coordinate alignment |
