FM81SE Wireless Testing and Performance Assessment System SE-Model
FM81SE Wireless Testing and Performance Assessment System SE-Model
$ xxx
Typical Price*
- Key Features and Functions
-

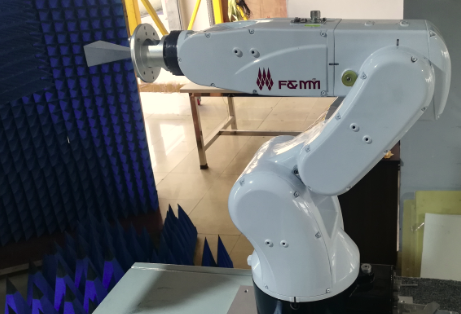

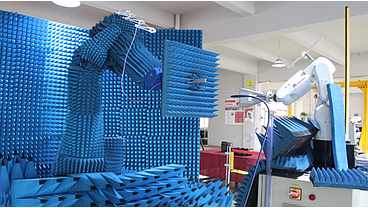

- Robotic motion with accuracy upto 220GHz Measurement

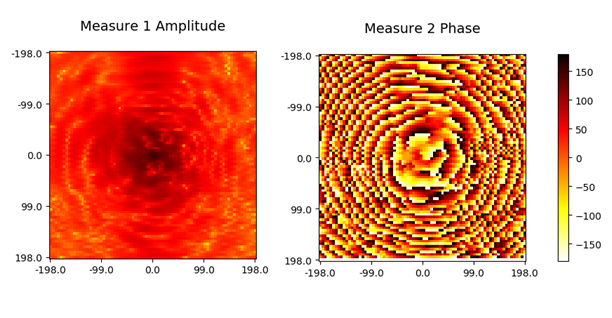

- Small mm-wave antenna planar nearfield measurement
- Cost effective solution for educational and research purposes
- Compact body requires minimum space ideal for lab demonstrations
- Data Sheet and Key Documents
-
- What's Included
-
- Hardware systems
- Software systems
- Accessories for fixture and tools
- Hardware user manual
- Software user manual
- How to Buy
Specifications
For more details: View Data Sheet Gain Repeatability, Typ |
0.05 dB |
|
HPBW Repeatability, Typ |
0.08 deg |
|
SLL-20db Repeatibility,rms |
0.12 dB |
|
System Angular Accuracy |
0.03 deg |
|
System Pointing Accuracy |
0.1 deg |
|
Beam Pointing Testing Accuracy |
0.1 deg |
|
DUT Re-position Accuracy |
0.1 deg |
|
DUT Max Scan Angle |
50 deg |
|
Auto Coordinates Calculation |
6 (c_d, c_s, c_p, c_t, c_f, c_b) |
|
System Drive |
Full Servo Drive |
|
Typ Scan Size |
0.5m x 0.5m x 0.2m |
|
Scan Speed |
1mm/s - 300mm/s |
|
Surface Flatness, Typ |
0.05mm RMS |
|
Position Resolution, Typ |
0.02mm RMS |
|
Probe Max Weight |
10 Kg |
|
Control Unit |
Industrial PC + LED |
|
Power Supply |
100-240 VAC; 50/60 Hz, 1500 watts |
|
Typ Space for Deployment |
1.5m x 1.5m |
|
Typ Anechoic Chamber |
2.0m x 2.0m x 1.5m |
|
Options & Upgrade
Services
Post-Purchase Upgrades |
|
|
FM81-AH001 | Collision avoidance light grating that could prevent robot from collision with device under test | |
Functional Options |
|
|
FM81-AS002 | Software module used for three-eye fast coordinate calibration, which is the driver for AH002 hardware module |
Resource Center
Brochures | ||
FM81无线测试和性能评估系统选型手册.pdf
FM81一体多用无线测量和性能评估系,可用于汽车工业、卫星和航、无线通信、国防工业、 教育和研究、人工智能、三维成像和检测等等领域 |
2019-10-01 | 1.00 Mb |
FM81无线测试和性能评估系统手册.pdf
FM81一体多用无线测量和性能评估系,可用于汽车工业、卫星和航、无线通信、国防工业、 教育和研究、人工智能、三维成像和检测等等领域 |
2019-10-01 | 891.73 Kb |
Brochure_Docfm81.pdf
FM81 Product Brochure that gives general introduction to robotic testing systems and its technical highlights... |
2019-09-01 | 789.80 Kb |
fm81selection.pdf
Product selection guide for FM81 Wireless Testing and Performance Assessment Systems |
2019-09-01 | 819.32 Kb |
Application Notes | ||
Docfm81note013.pdf

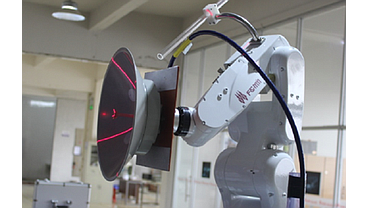

This document describes the importance of both measurement instrument and measurement technologies. Via realistic satellite dish antenna measurement process, we conclude that, under certain circumstances, measurement technologies can play even more vital role in the whole turn-key testing solutions. |
2019-08-06 | 758.90 Kb |
Docfm81note012.pdf
Fragrant Mountain Microwave (F&MM) understands the driven force for higher efficiency in many R&D and manufacture testing environment. Before a product enters production, higher efficiency stands for more prototyping cycles and ultimately better qualities. Whether the design achieves sufficient margins in specifications could greatly impact the smoothness during pilot and massive production cycles. This documents describe a few important aspects we have incorporated in our product development cycle. |
2019-06-13 | 852.60 Kb |
Note_Docfm81note011.pdf

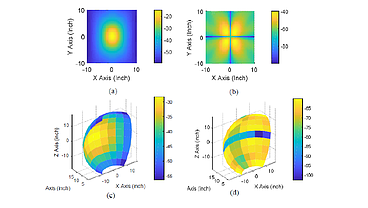

This application note reveals our common practice of assessing planar and spherical nearfield transform algorithms for two standard in-house antenna models. Experiments described in this paper provides a quantitative justification for rudimentary measurement parameters and quality check process whenever newer versions of algorithms get released. |
2019-05-26 | 1.00 Mb |
Product Highlights
Accessories
* Prices for: China. Prices are subject to change without notice. Prices shown are Manufacturer's Suggested Retail Prices (MSRP). Prices shown are exclusive of taxes.
